File No.: LL98737 CSA-CUS APPROVAL

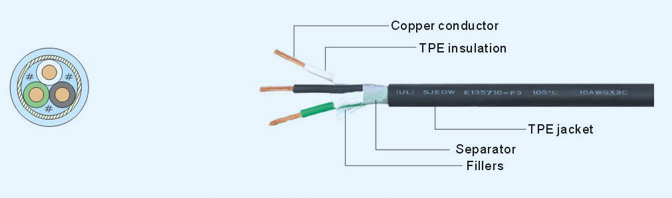

Product Description
Bare stranded copper conductor
Color-coded TPE insulation and jacket
Cores twisted together with fillers
Separator overcore
TPE jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:300V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type SJEO,SJEOO and Outdoor-use cord type SJEW are also available
Outdoor-use cords pass -40℃ cold bend test
Applications
For portable hand tools,washing machines,polishers,sanders,vibrators,shop lights,therapeutic machines,dish washers,medical equipment,office machines and outdoor-use cord sets
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Insulation |
Jacket |
Overall |
|
|
AWG |
No./mm |
|||||
|
SJE SJTEO SJTEOO SJEW SJEOW SJEOOW |
3 |
18 |
41/0.160 |
0.76 |
0.76 |
7.8±0.1 |
|
3 |
16 |
26/0.252 |
0.76 |
0.76 |
8.5±0.1 |
|
|
3 |
14 |
41/0.252 |
0.76 |
0.76 |
9.25±0.1 |
|
|
3 |
12 |
65/0.252 |
1.14 |
1.14 |
11.0±0.1 |
|
|
3 |
10 |
104/0.252 |
1.52 |
1.52 |
14.6±0.1 |
|
