Product Description

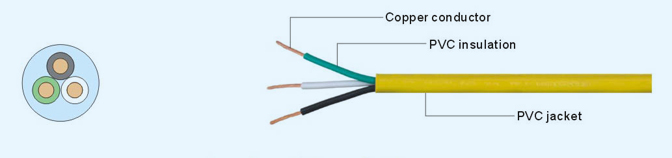

Bare stranded copper conductor
Color-coded PVC insulation and jacket
Cores twisted together
PVC jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:300V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type SJTO,SJTOO and Outdoor-use cord type SJTW are also available
Outdoor-use cords pass -40℃ cold bend test
Applications
For portable hand tools,washing machines,polishers,sanders,vibrators,shop lights,therapeutic machines,dish washers,medical equipment,office machines and outdoor-use cord sets
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Jacket |
Overall Diameter mm |
|
|
AWG |
No./mm |
||||
|
SJT SJTO SJTOO SJTW SJTOW SJTOOW |
2 |
18 |
41/0.160 |
0.76 |
7.4±0.1 |
|
3 |
18 |
41/0.160 |
0.76 |
7.8±0.1 |
|
|
4 |
18 |
41/0.160 |
0.76 |
8.36±0.1 |
|
|
2 |
16 |
26/0.252 |
0.76 |
8.0±0.1 |
|
|
3 |
16 |
26/0.252 |
0.76 |
8.5±0.1 |
|
|
4 |
16 |
26/0.252 |
0.76 |
9.2±0.1 |
|
|
2 |
14 |
41/0.252 |
0.76 |
8.9±0.1 |
|
|
3 |
14 |
41/0.252 |
0.76 |
9.25±0.1 |
|
|
4 |
14 |
41/0.252 |
0.76 |
10.2±0.15 |
|
|
2 |
12 |
65/0.252 |
0.76 |
10.5±0.15 |
|
|
3 |
12 |
65/0.252 |
0.76 |
11.0±0.15 |
|
|
4 |
12 |
65/0.252 |
0.76 |
12.1±0.15 |
|
|
|
3 |
10 |
104/0.252 |
1.14 |
14.6±0.15 |
