File No.: E135710 UL/cUL APPROVAL
Product Description

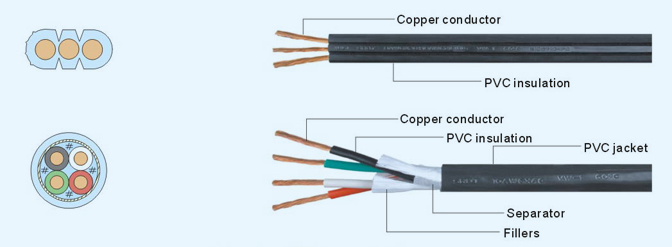

Parallel cord
Bare stranded copper conductor
Color-coded PVC insulation
Rated temperature:60℃,90℃
Passed UL VW-1&CSA FT2 flame test
Round cord
Bare stranded copper conductor
Color-coded PVC insulation
Cores twisted together with fillers
Separator overcore
PVC jacketed water-resistant type
Rated temperature:60℃,90℃
Passed UL VW-1&CSA FT2 flame test
Applications
Range and Dryer application
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Insulation |
Jacket |
Overall |
|
|
AWG |
No./mm |
|||||
|
SRDT |
3 |
10 |
26/0.506 |
2.54 |
/ |
8.3×20.6 |
|
2+1 |
8/2C |
41/0.506 |
2.54 |
/ |
9.0×21.8 |
|
|
10/1C |
26/0.506 |
|||||
|
2+1 |
6/2C |
65/0.506 |
2.54 |
/ |
10.0×24.4 |
|
|
8/1C |
41/0.506 |
|||||
|
4 |
10 |
26/0.506 |
1..14 |
1.52 |
16.3±0.2 |
|
|
2+2 |
8/2C |
41/0.506 |
1.14 |
1.52 |
17.6±0.2 |
|
|
10/2C |
26/0.506 |
|||||
|
2+2 |
6/2C |
65/0.506 |
1.14 |
1.52 |
19.5±0.2 |
|
|
8/2C |
41/0.506 |
|||||
