File No.: E135710 LL95737 UL/CSA APPROVAL

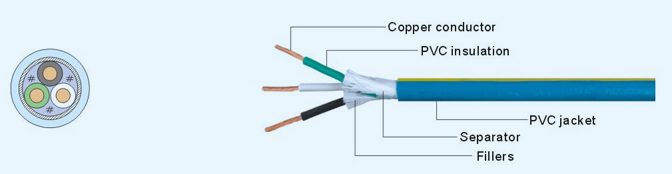

Product Description
Bare stranded copper conductor
Color-coded PVC insulation and jacket
Cores twisted together with fillers
Separator overcore
PVC jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:600V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type STO,STOO and Outdoor-use cord type STW are also available
Outdoor-use cords pass -40℃ cold bend test
Bare stranded copper conductor
Color-coded PVC insulation and jacket
Cores twisted together with fillers
Separator overcore
PVC jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:600V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type STO,STOO and Outdoor-use cord type STW are also available
Outdoor-use cords pass -40℃ cold bend test
Applications
For portable hand tools,washing machines,polishers,sanders,vibrators,shop lights,therapeutic machines,dish washers,medical equipment,office machines and outdoor-use cord sets
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Insulation |
Jacket |
Overall |
|
|
AWG |
No./mm |
|||||
|
ST STO STOO STW STOW STOOW |
2 |
18 |
41/0.160 |
0.76 |
1.52 |
8.8±0.1 |
|
3 |
18 |
41/0.160 |
0.76 |
1.52 |
9.3±0.1 |
|
|
2 |
16 |
26/0.252 |
0.76 |
1.52 |
9.4±0.1 |
|
|
3 |
16 |
26/0.252 |
0.76 |
1.52 |
9.9±0.1 |
|
|
3 |
14 |
41/0.252 |
1.14 |
2.03 |
13.4±0.15 |
|
|
3 |
12 |
65/0.252 |
1.14 |
2.41 |
15.2±0.2 |
|
|
3 |
10 |
104/0.252 |
1.14 |
2.41 |
16.7±0.2 |
|
|
4 |
10 |
104/0.252 |
1.14 |
2.41 |
18.0±0.2 |
|
|
3 |
8 |
65/0.401 |
1.52 |
2.79 |
21.7±0.2 |
|
|
4 |
8 |
65/0.401 |
1.52 |
3.18 |
25.4±0.2 |
|
|
3 |
6 |
133/0.354 |
1.52 |
3.18 |
24.9±0.2 |
|
|
3+1 |
6/3C |
133/0.354 |
1.52 |
3.18 |
27.3±0.2 |
|
|
8/1C |
65/0.401 |
1.52 |
3.18 |
27.3±0.3 |
||
