File No.: E135710 LL95737 UL/CSA APPROVAL

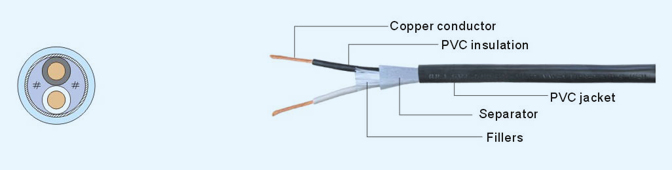

Product Description
Bare stranded copper conductor
Color-coded PVC insulation and jacket
Separator overcore
PVC jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:300V
Passed UL VW-1&CSA FT2 flame test
Applications
For hight-duty portable tools,mixers and vacuum cleaners
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Jacket |
Overall Diameter mm |
|
|
AWG |
No./mm |
||||
|
SVT |
2 |
18 |
41/0.160 |
0.76 |
6.0±0.1 |
|
3 |
18 |
41/0.160 |
0.76 |
6.0±0.1 |
|
|
2 |
17 |
52/0.160 |
0.76 |
6.0±0.1 |
|
|
3 |
17 |
52/0.160 |
0.76 |
6.0±0.1 |
|
|
2 |
16 |
26/0.160 |
0.76 |
6.0±0.1 |
|
|
3 |
16 |
26/0.160 |
0.76 |
6.0±0.1 |
|
