File No.: LL95737 CSA-CUS APPROVAL
Product Description

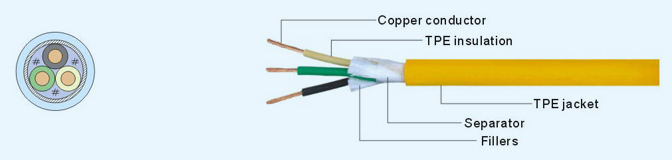

Bare stranded copper conductor
Color-coded TPE insulation and jacket
Cores twisted together with fillers
Separator overcore
TPE jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:600V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type SEO,SEOO and Outdoor-use cord type SEW are also available
Outdoor-use cords pass -40℃ cold bend test
Bare stranded copper conductor
Color-coded TPE insulation and jacket
Cores twisted together with fillers
Separator overcore
TPE jacketed water-resistant type
Rated temperature:60℃~105℃
Rated voltage:600V
Passed UL VW-1&CSA FT2 flame test
Oil-resistant type SEO,SEOO and Outdoor-use cord type SEW are also available
Outdoor-use cords pass -40℃ cold bend test
Applications
For large dynamoelectric appliance,recreational vehicle&mobile homes
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Insulation |
Jacket |
Overall |
|
|
AWG |
No./mm |
|||||
|
ST STO STOO STW STOW STOOW |
3 |
18 |
41/0.160 |
0.76 |
1.52 |
9.3±0.1 |
|
3 |
16 |
26/0.252 |
0.76 |
1.52 |
9.9±0.1 |
|
|
3 |
14 |
41/0.252 |
1..14 |
2.03 |
13.4±0.15 |
|
|
3 |
12 |
65/0.252 |
1.14 |
2.41 |
15.2±0.2 |
|
|
3 |
10 |
104/0.252 |
1.14 |
2.41 |
16.7±0.2 |
|
