File No.: E139315 PSE APPROVAL
Product Description

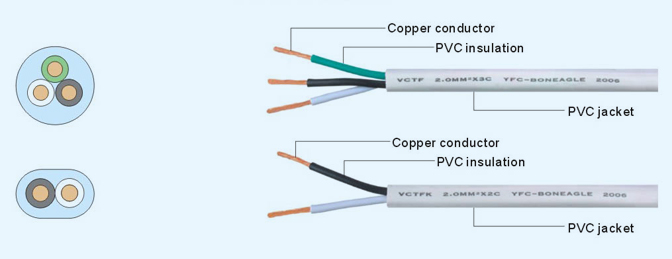

TYPE VCTF
Bare stranded copper conductor
Color-coded PVC insulation
Cores twisted together
PVC jacketed round cord
Rated temperature:60℃
Rated voltage: 300V
TYPE VCTFK
Bare stranded copper conductor
Color-coded PVC insulation
PVC jacketed oval cord
Rated temperature:60℃
Rated voltage: 300V
Applications
Suitable for indoor small electrical instruments
Specification Description
|
Wire Type |
No. of Core |
Conductor |
Insulation |
Jacket |
Overall |
|
|
Area |
No./mm |
|||||
|
VCTF |
2 |
0.75 |
30/0.18 |
0.6 |
1.0 |
6.6±0.1 |
|
2 |
1.25 |
50/0.18 |
0.6 |
1.0 |
7.4±0.1 |
|
|
2 |
2.0 |
37/0.263 |
0.6 |
1.0 |
8.0±0.1 |
|
|
3 |
0.75 |
30/0.18 |
0.6 |
1.0 |
7.0±0.1 |
|
|
3 |
1.25 |
50/0.18 |
0.6 |
1.0 |
7.8±0.1 |
|
|
3 |
2.0 |
37/0.263 |
0.6 |
1.0 |
8.5±0.1 |
|
|
VCTFK |
2 |
0.75 |
30/0.18 |
0.6 |
1.0 |
3.4×6.6 |
|
2 |
1.25 |
50/0.18 |
0.6 |
1.0 |
4.7×7.4 |
|
|
2 |
2.0 |
37/0.263 |
0.6 |
1.0 |
5.0×8.0 |
|
