CCC Approved Cord

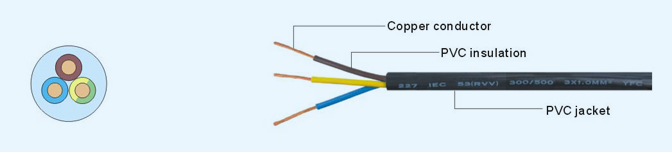

    CCC Approved Cord-d.jpg


    Product Description
    Bare stranded copper conductor
    Color-coded PVC insulation and jacket
    Cores twisted together
    Rated temperature:70℃
    Rated voltage: 300V/500V


    Applications
    Suitable for indoor small electrical instruments power supply wire


    Specification Description

    Wire Type

    No. of Core

    Conductor

    Insulation
    Thickness
    mm

    Jacket
    Thickness
    mm

    Overall
    Diameter
    mm

    Area

    No./mm

    227IEC
    53(RVV)

    3

    0.75

    24/0.20

    0.6

    0.8

    6.8±0.1

    3

    1.0

    32/0.20

    0.6

    0.8

    7.0±0.1

    3

    1.5

    30/0.254

    0.7

    0.9

    8.3±0.1
