1015 Hook-up Wire

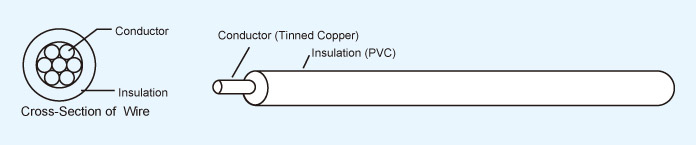

Product Construction:
Conductor: Tinned Copper
Insulation: PVC
Color-coded PVC insulation.

Applications:
Internal Wiring of Appliances

Compliances:
Rating Temperature:105°C
Rating Voltage:600 Volts
Flammability: VW-1 Vertical Wire Flame Test

Standards:
Appliance Wiring Material UL 758 AWM (USA)UL 1581

Conductor			Insulation		Electrical Properties
AWG Size	Stranding (No./mm)	Outside Diameter (mm)	Thickness (mm)	Diameter (mm)	Max.Conductor. Resistance at 20℃(Ω/mm)	Min.Insulation Resistance at 20℃(Ω/mm)	Min.Dielectric Withstanding Voltage (AC.V/1 min)
30	7/0.10	0.30	0.76	1.8	376	10	2000
28	7/0.127	0.38	0.76	1.9	237
26	26/0.16	0.48	0.76	2.0	148
24	7/0.20	0.58	0.80	2.2	93.2
22	17/0.16	0.75	0.77	2.3	55.0
20	26/0.16	0.92	0.78	2.5	36.4
18	17/0.25	1.20	0.80	2.8	23.2
16	26/0.25	1.53	0.80	3.1	14.6
