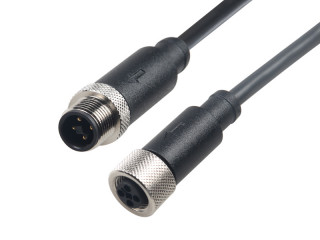

Product name:M12 4PIN Male-straight&Female-right angled Unshielded
Specifications:M12 4PIN Male-straight&Female-right angled Unshielded 22AWG
Product specifications:
| Contacts Poles | 4 Pin | Cable Length | Customized lengthes |
| Plug form | D-code Male-straight&Female-right | Cable Jacket | PVC，PUR，halogen- free |
| Current Rating | 4A | Specification | 22AWG |
| Voltage Rating | 250V | EMC Shielding | Unshielded |
| Contacts Material | Phosphor bronze, Brass | Jacket Color | Black |
| Contacts Plating | 3μ” Gold plating thickness | Temperature rate | -40°C~+80°C |
| Inserts | TPU+GF | Flamability | VW-1 |
| Overmolding | TPU/PVC | Cable Features | UV-Resistant, Hydrolysis resistant |
| Locking Screws | Brass with nickel plated | Compliance | RoHS 2.0 compliant |
| Protection Degree | IP 67 | Warranty | 2-years quality guarantee period |
| Reference Standard | IEC 61076-2-105 |
Product Description:
The M12 metric size D-Coding connectors is mainly designed and developed for industrial Ethernet/ Profinet cabling. Also, M12 D-Coding connector designed with double keyway coding structure.
