Category 6A UTP Horizontal Cable

Features:

All Proposed Category 6A Requirements as Per ANSI/TIA, ISO/IEC, CENELEC EN and UL Standards.
ANSI/TIA-568.2-D Cat.6A
ISO/IEC 11801-1 Class EA
CENELEC EN 50173-1, CENELEC EN 50288-11-1 for horizontal cable
IEC 61156-5 for horizontal cable
Flame Retardancy is verified according to IEC 60332-1-2
UL 444, NFPA 262
Our products always comply with RoHS and REACH Directives, and TYPE CMP products always comply with RoHS Directives

Approval:

UL/cUL Listed

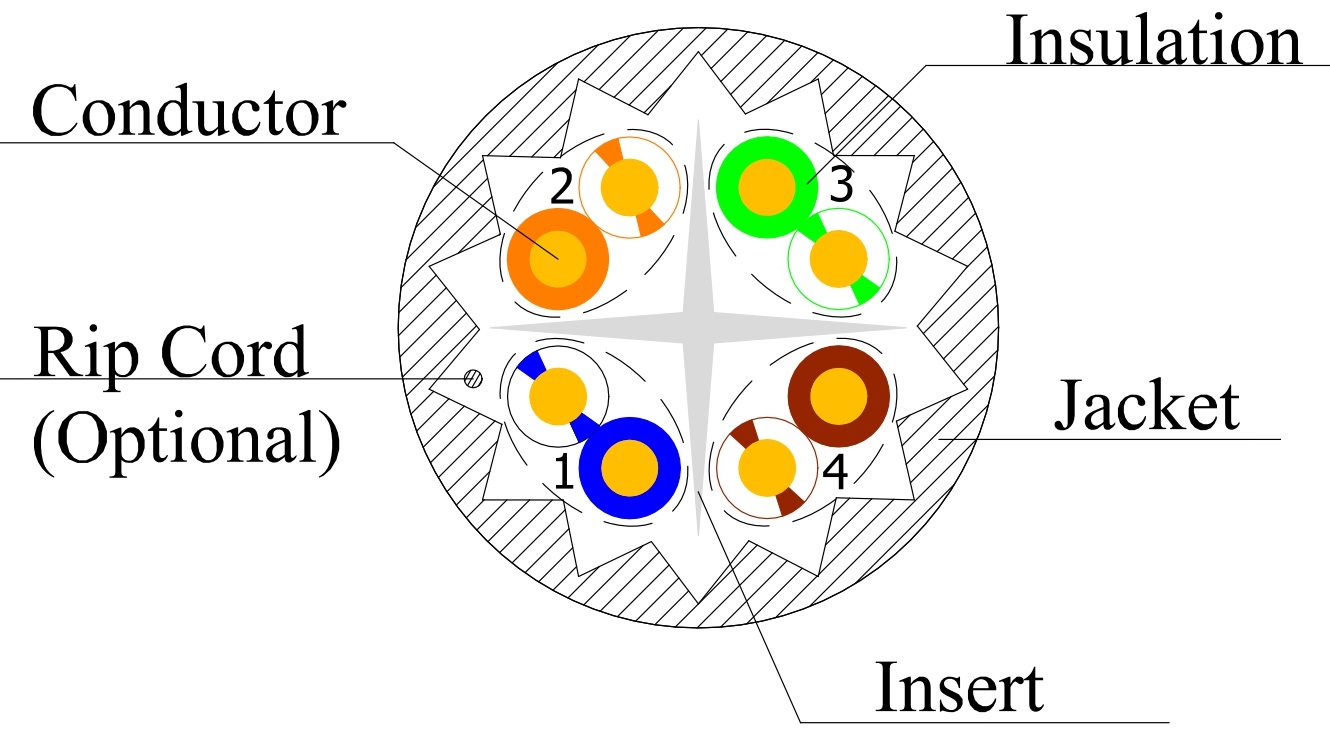

Configuration:

Ordering Information:

Use (XXX1) to specify length:305=305m, 500=500m
Use (XX2) to specify color: WH=White, RD=Red, YL=Yellow, BL=Blue, BK=Black, GY=Gray, OR=Orange
Others: Available on Requests.

Product Specification:

[Category 6A UTP Horizontal, 23AWG×4P, LSOH (OD 6.7mm)]

[Category 6A UTP Horizontal, 23AWG×4P, CMH (OD 6.7mm)]

[Category 6A UTP Horizontal, 23AWG×4P, CM (OD 6.7mm)]

[Category 6A UTP Horizontal, 23AWG×4P, CMP (OD 7.5mm)]

[Category 6A UTP Horizontal, 23AWG×4P, CMP (OD 6.7mm)]
