Category 6A PIMF Horizontal Cable

Features:

All Proposed Category 6A Requirements as Per ANSI/TIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA-568.2-D Cat.6A
ISO/IEC 11801-1 Class EA
UL2556
Our products always comply with RoHS and REACH Directives.

Approval:

UL/cUL Listed.
3P certified ANSI/TIA-568.2-D category 6A testing performance requirements.

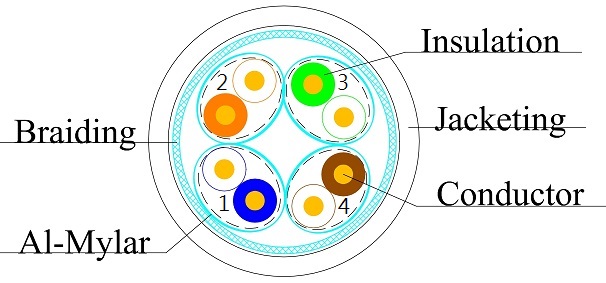

Configuration:

Ordering Information:

Part Number	Description
YLC-APPH04-CR-XXX1XX2	Category 6A PIMF Horizontal, 23AWG×4P, LSOH (OD 7.4mm)
YLC-APDH04-AR-XXX1XX2	Category 6A PIMF Horizontal Duplex, 23AWGx4P, PVC (OD 7.5×15.7mm)
YLC-APPH04-HR-XXX1XX2	Category 6A PIMF Horizontal, 23AWG×4P, CMH (OD 7.4mm)
YLC-APDH04-CR-XXX1XX2	Category 6A PIMF Horizontal Duplex, 23AWGx4P, LSOH (OD 7.5×15.7mm)
YLC-APPH04-AR-XXX1XX2	Category 6A PIMF Horizontal, 23AWG×4P, CM (OD 7.4mm)
YLC-APPH04-BR-XXX1XX2	Category 6A PIMF Horizontal, 23AWG×4P, CMR (OD 7.4mm)

Use (XXX1) to specify length:305=305m, 500=500m
Use (XX2) to specify color: WH=White, RD=Red, YL=Yellow, BL=Blue, BK=Black, GY=Gray, OR=Orange
Others: Available on Requests.

Product Specification:

[Category 6A PIMF Horizontal, 23AWG×4P, LSOH (OD 7.4mm)]

[Category 6A PIMF Horizontal Duplex, 23AWGx4P, LSOH (OD 7.5×15.7mm)]

[Category 6A PIMF Horizontal, 23AWG×4P, CMH (OD 7.4mm)]

[Category 6A PIMF Horizontal Duplex, 23AWGx4P, PVC (OD 7.5×15.7mm)]

[Category 6A PIMF Horizontal, 23AWG×4P, CM (OD 7.4mm)]

[Category 6A PIMF Horizontal, 23AWG×4P, CMR (OD 7.4mm)]
