Features:
All Proposed Category 6 requirements as per ANSI/TIA, ISO/IEC, and UL Standards,
ANSI/TIA 568.2-D CAT.6
ISO/IEC 11801-1 Class E
UL 444 , UL 1685
Our products always comply with RoHS and REACH Directives.
Approval:
UL/cUL Listed.

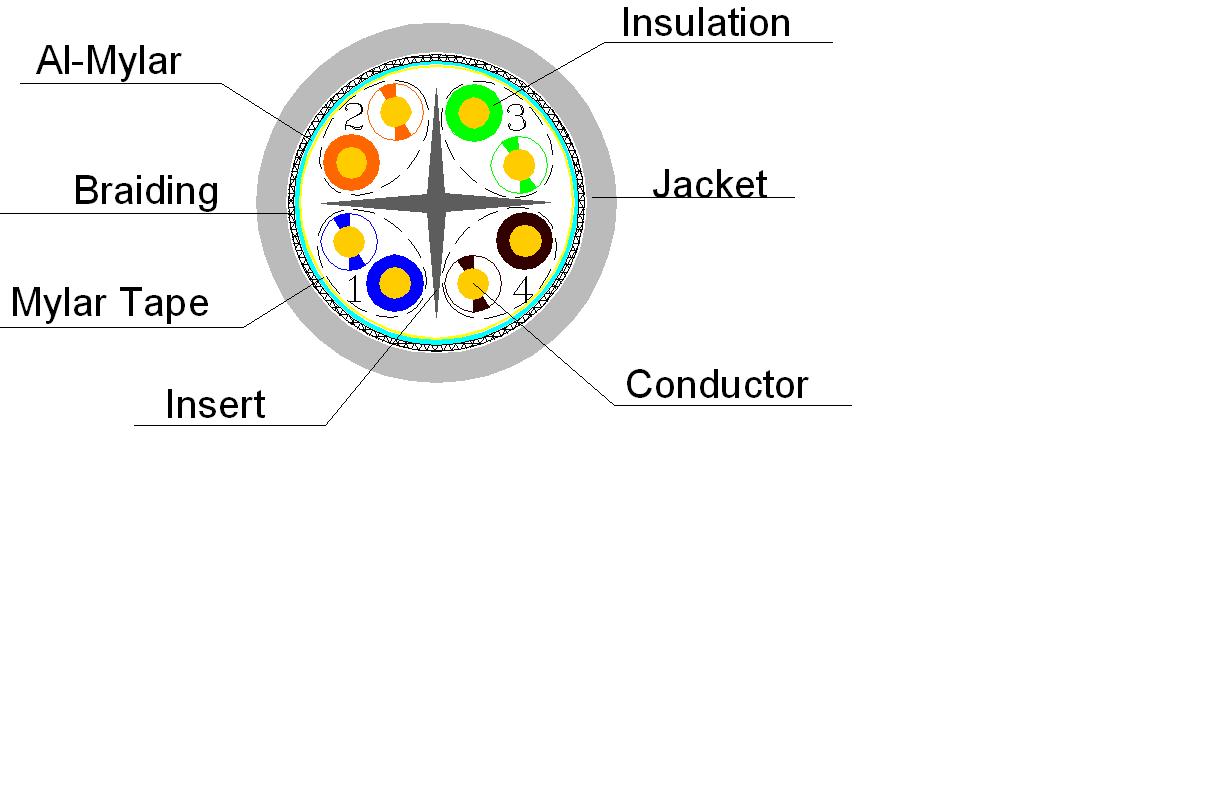

Configuration:

Ordering Information:
|
Part Number |
Description |
|
YLC-6SH04-CR-XXX1XX2 |
Category 6 SF-UTP Horizontal,23AWGx4P, With Cross, LSOH (OD 7.3mm) |
| YLC-6SH04-HR-XXX1XX2 | Category 6 SF-UTP Horizontal,23AWGx4P, With Cross, CMH (OD 7.3mm) |
|
YLC-6SH04-AR-XXX1XX2 |
Category 6 SF-UTP Horizontal,23AWGx4P, With Cross, CM (OD 7.4mm) |
Use (XXX1) to specify length:305=305m, 500=500m
Use (XX2) to specify color: WH=White, RD=Red, YL=Yellow, BL=Blue, BK=Black, GY=Gray, OR=Orange
Others: Available on Requests.
Product Specification:
[Category 6 SF-UTP Horizontal,23AWGx4P, With Cross, LSOH (OD 7.3mm)]
[Category 6 SF-UTP Horizontal,23AWGx4P, With Cross, CMH (OD 7.3mm)]
[Category 6 SF-UTP Horizontal,23AWGx4P, With Cross, CM (OD 7.4mm)]
