Features:
All Category 5e Requirements as Per ANSI/TIA, ISO/IEC, CENELEC EN and UL Standards:
ANSI/TIA-568.2-D Cat.5e
ISO/IEC 11801-1 Class D, CENELEC EN 50173-1
IEC 61156-5, CENELEC EN 50288-3-1 for Horizontal Cable
Flame Retardancy is Verified According to IEC 60332-1-2
UL 444 & UL 1685 for TYPE CM, UL 1666 for TYPE CMR, NFPA 262 for TYPE CMP
Our products always comply with RoHS and REACH Directives, and TYPE CMP products always comply with RoHS Directives
Approval:
UL/cUL Listed
ETL/3P Certified ANSI/TIA-568.2-D Category 5e Testing Performance Requirements.

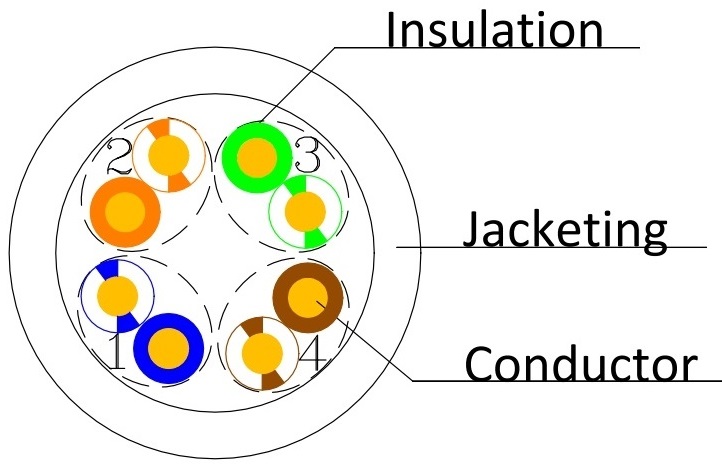

Configuration:
Ordering Information:
|
Part Number |
Description |
|
YLC-EUH04-CX1-XXX1XX2 |
Category 5e UTP Horizontal, 24AWG×4P, LSOH (OD 5.0mm) |
| YLC-EUH04-AX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, PVC (OD 5.0mm) |
|
YLC-EUH404-AX1-XXX1XX2 |
Category 5e UTP Horizontal, 24AWG×4P, PVC (OD 4.8mm) |
| YLC-EUH04-HX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CMH (OD 5.0mm) |
| YLC-EUH04-A1X1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CM (OD 5.1mm) |
| YLC-EUH04-BX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CMR (OD 5.1mm) |
| YLC-EUH04-DX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CMP (OD 4.9mm) |
| YLC-EUH04-DX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CMP (OD 4.8mm) |
| YLC-EUH04-TX1-XXX1BK | Category 5e UTP Horizontal, 24AWG×4P, CMX (Outdoor) (OD 4.9mm) |
| YLC-EUH04-MX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CM-CMX Outdoor & Sunlight Resistance (OD 4.9mm) |
| YLC-EUH04-KX1-XXX1XX2 | Category 5e UTP Horizontal, 24AWG×4P, CMR-CMX Outdoor & Sunlight Resistance (OD 5.2mm) |
| YLC-EUH04-EX1-XXX1BK | Category 5e UTP Horizontal, 24AWG×4P, PE (Outdoor, with paper) (OD 5.0mm) |
| YLC-EUH04-FX1-XXX1BK | Category 5e UTP Horizontal, 24AWG×4P, PE+Gel (Outdoor) (OD 5.5mm) |
| YLC-EUH404-FX1-XXX1BK | Category 5e UTP Horizontal, 24AWG×4P, PE+Gel (Outdoor) (OD 5.1mm) |
| YLC-EUH04-GR-XXXBK | Category 5e U-UTP Horizontal, 24AWG×4P, PE+Steel Wire (Outdoor) (OD 5.1×7.5mm) |
| YLC-EUH404-ERR-305BK | Category 5e UTP Horizontal, 24AWG×4P, PE outdoor, water-resistant (OD 5.0mm) |
| YLC-EUH404-TR-305BK | Category 5e UTP Horizontal, 24AWG×4P, CMX outdoor, water-resistant (OD 5.0mm) |
| YLC-EUH04-EWX1-XXX1BK | Category 5e UTP Horizontal, 24AWG×4P, Water-blocking, PE(Outdoor) (OD 5.5mm) |
Use (XXX1) to specify length:305=305m, 500=500m
Use (XX2) to specify color: WH=White, RD=Red, YL=Yellow, BL=Blue, BK=Black, GY=Gray, OR=Orange
Others: Available on Requests.
Product Specification:
[Category 5e UTP Horizontal, 24AWG×4P, LSOH (OD 5.0mm)]
[Category 5e UTP Horizontal, 24AWG×4P, PVC (OD 5.0mm)]
[Category 5e UTP Horizontal, 24AWG×4P, PVC (OD 4.8mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMH (OD 5.0mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CM (OD 5.1mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMR (OD 5.1mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMP (OD 4.9mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMP (OD 4.8mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMX (Outdoor) (OD 4.9mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CM-CMX Outdoor & Sunlight Resistance (OD 4.9mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMR-CMX Outdoor & Sunlight Resistance (OD 5.2mm)]
[Category 5e UTP Horizontal, 24AWG×4P, PE (Outdoor, with paper) (OD 5.0mm)]
[Category 5e UTP Horizontal, 24AWG×4P, PE+Gel (Outdoor) (OD 5.5mm)]
[Category 5e UTP Horizontal, 24AWG×4P, PE+Gel (Outdoor) (OD 5.1mm)]
[Category 5e U-UTP Horizontal, 24AWG×4P, PE+Steel Wire (Outdoor) (OD 5.1×7.5mm)]
[Category 5e UTP Horizontal, 24AWG×4P, PE outdoor, water-resistant (OD 5.0mm)]
[Category 5e UTP Horizontal, 24AWG×4P, CMX outdoor, water-resistant (OD 5.0mm)]
[Category 5e UTP Horizontal, 24AWG×4P, Water-blocking, PE(Outdoor) (OD 5.5mm)]
